- There are four distinct types of JDBC drivers:
- Type1 - JDBC-ODBC Bridge Driver (Bridge)
- Type2 - Native API Java Driver (Native)
- Type3 - Java to Network Protocol Driver (Middleware)
- Type4 - Pure Java Driver (Pure)
- Type1 - JDBC-ODBC Bridge Driver
- Bridges Java application and ODBC database connectivity
- This driver is bundled with Java2 SDK(Software Develiopment
- JDBC statements call the ODBC by using the JDBC - ODBC
Bridge and finally the query is executed by the database.
- May pose performance limitations due to an overhead
since the calls have to go through the JDBC to the ODBC driver.
- It works only with Microsoft Operating Systems
- Type 2 : Java Native Interface (JNI) Driver
- Converts JDBC calls into a database specific call for
databases such as MySQL, or ORACLE etc.Oracle's OCI (Oracle Call
Interface) client-side driver is an example of a Type 2 driver.
- Communicates directly with the database server & requires
some native code to connect to the database.
- The vendor client library needs to be installed on the
client machine. So it cannot be used in internet due the client
side software needed
- Native API must be installed in the Client System and hence
type 2 drivers cannot be used for the Internet.. Like Type 1
drivers, itís not written in Java Language which may pose a

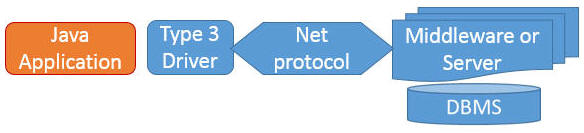

- Type 3
- The client does not need any application
- Server resolves connectivity: Usually a middleware server
then communicates the client's requests to the data source.
- written in Java and Portable
- Type 4 :uses java networking libraries to communicate directly
with the database server.
- Most suitable for the web
- JDBC drivers don't won't need to translate database
requests to ODBC or a native connectivity interface or to pass
the request on to another server.
- Drivers used in this series of documents:
- PostgreSQL (v7.0 and later)
|Next :: Establishing a Data Base Connection:: You can get a
connection in two different ways, using the
DriverManager mechanism or using a DataSource object.
- DriverManager :
- DataSource :
