FlowPane_TilePane1
  •  In FlowPane the nodes are laid out consecutive rows,  and wrap at the boundary set for the pane.
  • By default child nodes arranged left-ro-right. Nodes can flow vertically (in columns) or horizontally (in rows). A vertical flow pane wraps at the height boundary for the pane. A horizontal flow pane wraps at the width boundary for the pane.
  • TilePane : adds all of the nodes of  the same size. Nodes can be laid out horizontally (in rows) or vertically (in columns).
Code Snippet:

Codes:

package javafxtemplate1;

import java.sql.SQLException;
import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.Label;
import javafx.scene.layout.FlowPane;
import javafx.scene.layout.TilePane;
import javafx.scene.layout.VBox;
import javafx.stage.Stage;

public class JavaFXTemplate1 extends Application {
Label caption = new Label();
@Override
    public void start(Stage primaryStage)throws SQLException {
     Scene scene = new Scene(new Group());
     primaryStage.setTitle("Flow Pane & TilePane Array");
     FlowPane flow = new FlowPane();// scenelayout package FlowPane
     TilePane tPane  = new TilePane(); // scenelayout package TilePane
     flow.setVgap(8); flow.setHgap(4);
     tPane.setVgap(8); tPane.setHgap(4);

     flow.setPrefWrapLength(300);
    // Run alternate Flow and Tile
        for (int i = 0; i < 15; i++) {
            flow.getChildren().add(new Button("F-Button  " +i));
           // tPane.getChildren().add(new Button("T-Button  " +i));
        }
        //Sets the value of the property root.
       scene.setRoot(flow);
      // scene.setRoot(tPane);
       primaryStage.setScene(scene);
      // scene.getStylesheets().add
       //("http://manas9/BareBone_JavaCore/JavaFxCSS1.css");
       //OR
       scene.getStylesheets().add(javafxtemplate1.
         JavaFXTemplate1.class.getResource
        ("JavaFxCSS1.css").toExternalForm());
       primaryStage.show();

    }

public static void main(String[] args) throws SQLException {
launch(args);
}
}


Runtime View :

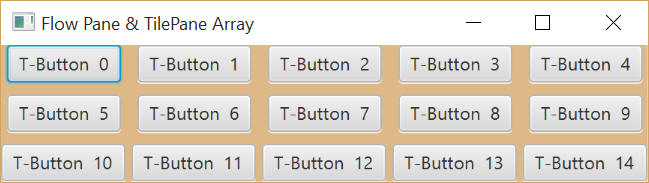

A)TilePane:

B) FlowPane
